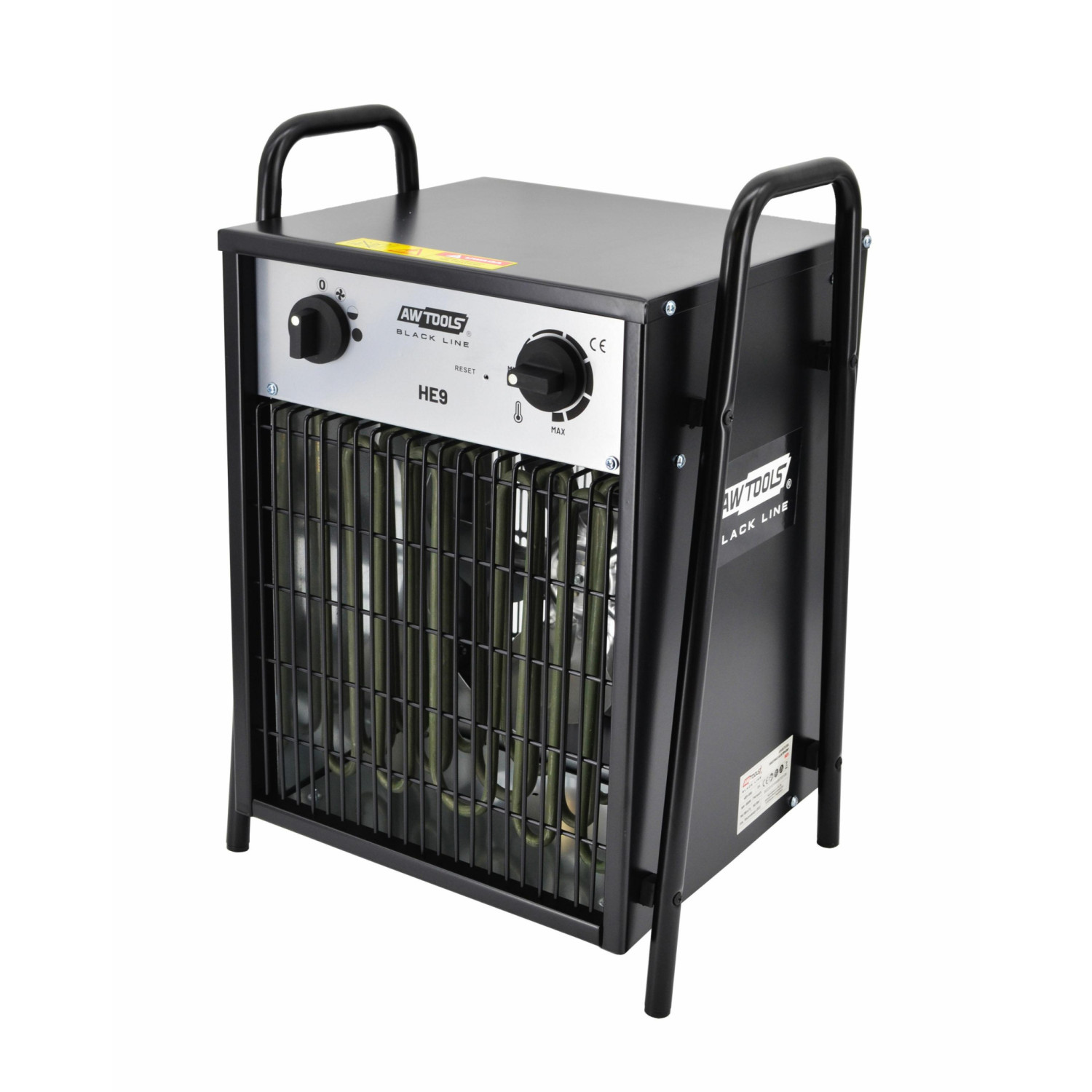

ELECTRIC FAN HEATER 9kW/ BLACK LINE

Housing made of steel sheet with a black powder coated finish, mounted on a robust tubular frame for stability.
Heating parts made of stainless steel and copper alloy.
Equipped with power adjustment switch, temperature adjustment switch and a cooling function.
Built-in thermostat ensures constant temperature and protects against overheating.
Designed for heating or drying purposes.
Can also be used a fan on hot days where only air circulation is required.

Technical data:
Model: HE9
Power input: 400~50Hz 3-Phase
Power output: 9 kW - 9000W
Min. power input: 4.5 kW – 4500W
Power settings: 3 modes
Heating output: 52/4500/9000W
Heating power: 3870 – 7740 kcal/h
Air flow: 1198 m3/h
Max. BTU output: 15354 – 30708 btu/h
Heating area: 80m2
Temperature range: -10°C +25°C
Thermostat control: 80°C
Rated current: 13 A
Thermal fuse: 16 A
Protection class: I
Protection type: IP24
Dimensions: 355 x 300 x 490 mm
Weight: 9.6 kg
