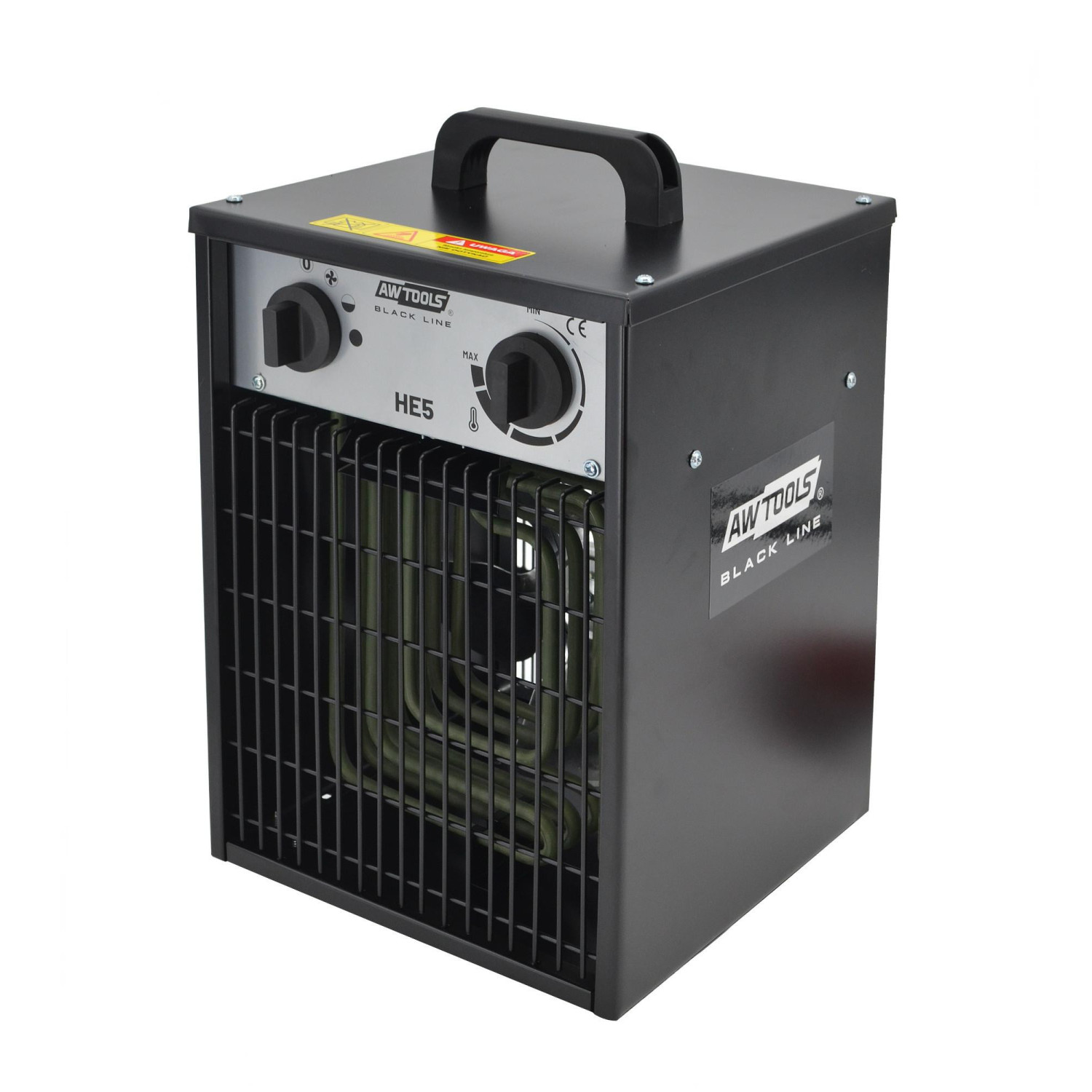

ELECTRIC FAN HEATER 5kW/ BLACK LINE

Housing made of steel sheet with a black powder coated finish, mounted on a robust tubular frame for stability.
Heating parts made of stainless steel and copper alloy.
Equipped with power adjustment switch, temperature adjustment switch and a cooling function.
Built-in thermostat ensures constant temperature and protects against overheating.
Designed for heating or drying purposes.
Can also be used a fan on hot days where only air circulation is required.

Technical data:
Model: HE5
Power input: 400~50Hz 3-Phase
Power output: 5 kW - 5000W
Min. power input: 1 kW – 1000W
Power settings: 3 modes
Heating output: 40/2500/5000W
Heating power: 2150 – 4300 kcal/h
Air flow: 793 m3/h
Max. BTU output: 8530 – 17060 btu/h
Heating area: 48m2
Temperature range: -10°C +25°C
Thermostat control: 70°C
Rated current: 7.2 A
Thermal fuse: 10A
Protection class: I
Protection type: IP24
Dimensions: 270 x 225 x 400 mm
Weight: 5.6 kg
