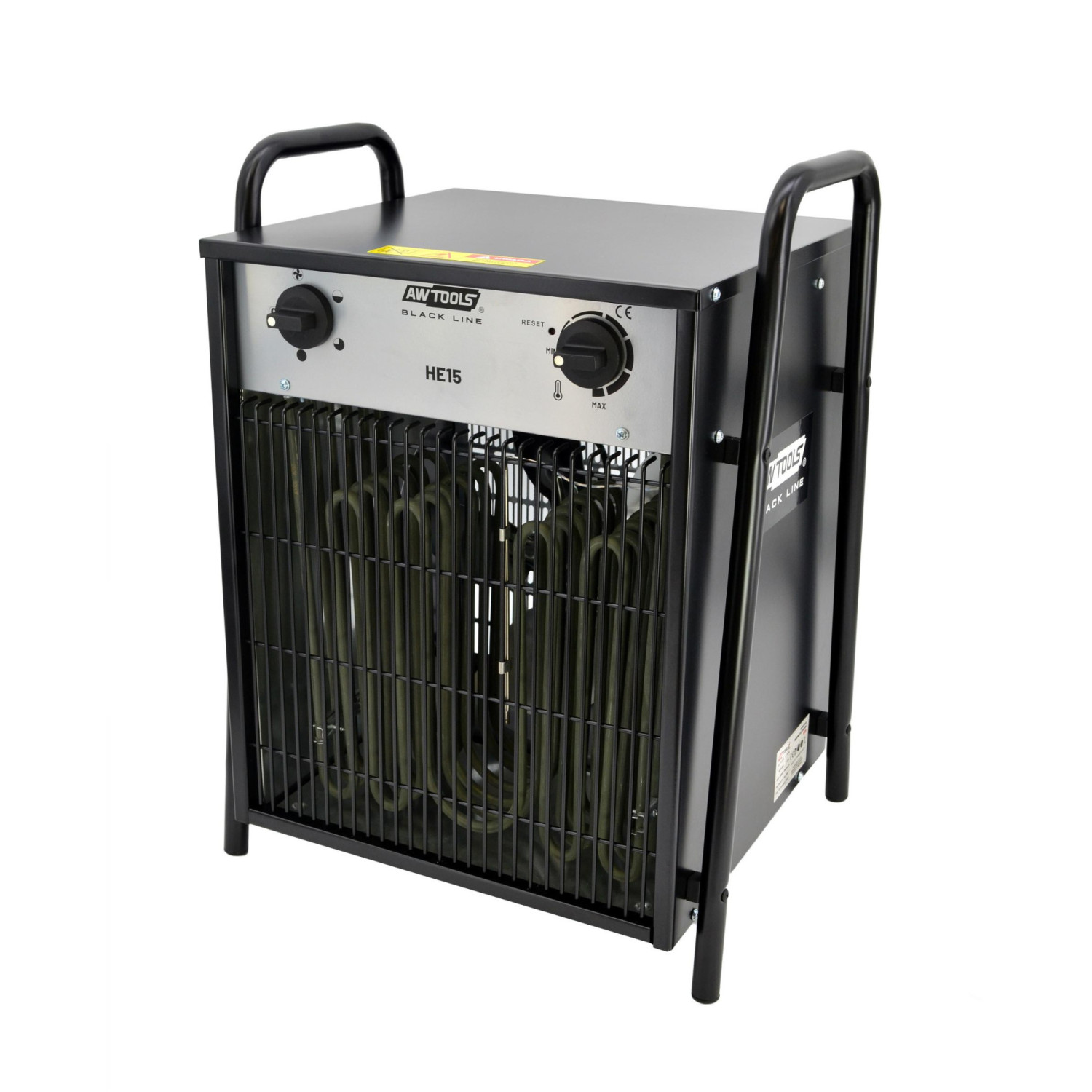

ELECTRIC FAN HEATER 15kW/ BLACK LINE

Housing made of steel sheet with a black powder coated finish, mounted on a robust tubular frame for stability.
Heating parts made of stainless steel and copper alloy.
Equipped with power adjustment switch, temperature adjustment switch and a cooling function.
Built-in thermostat ensures constant temperature and protects against overheating.
Designed for heating or drying purposes.
Can also be used a fan on hot days where only air circulation is required.

Technical data:
Model: HE15
Power input: 400~50Hz 3-Phase
Power output: 15 kW - 15000W
Min. power input: 5 kW – 5000WW
Power settings: 4 modes
Heating output: 95/5000/10000W/15000W
Heating power: 4300–8600-12900 kcal/h
Air flow: 2245 m3/h
Max. BTU output: 17060–34120-51180 btu/h
Heating area: 120m2
Temperature range: -10°C +25°C
Thermostat control: 140°C
Rated current: 21.7 A
Thermal fuse: 25 A
Protection class: I
Protection type: IP24
Dimensions: 410 x 360 x 550 mm
Weight: 14.5 kg
