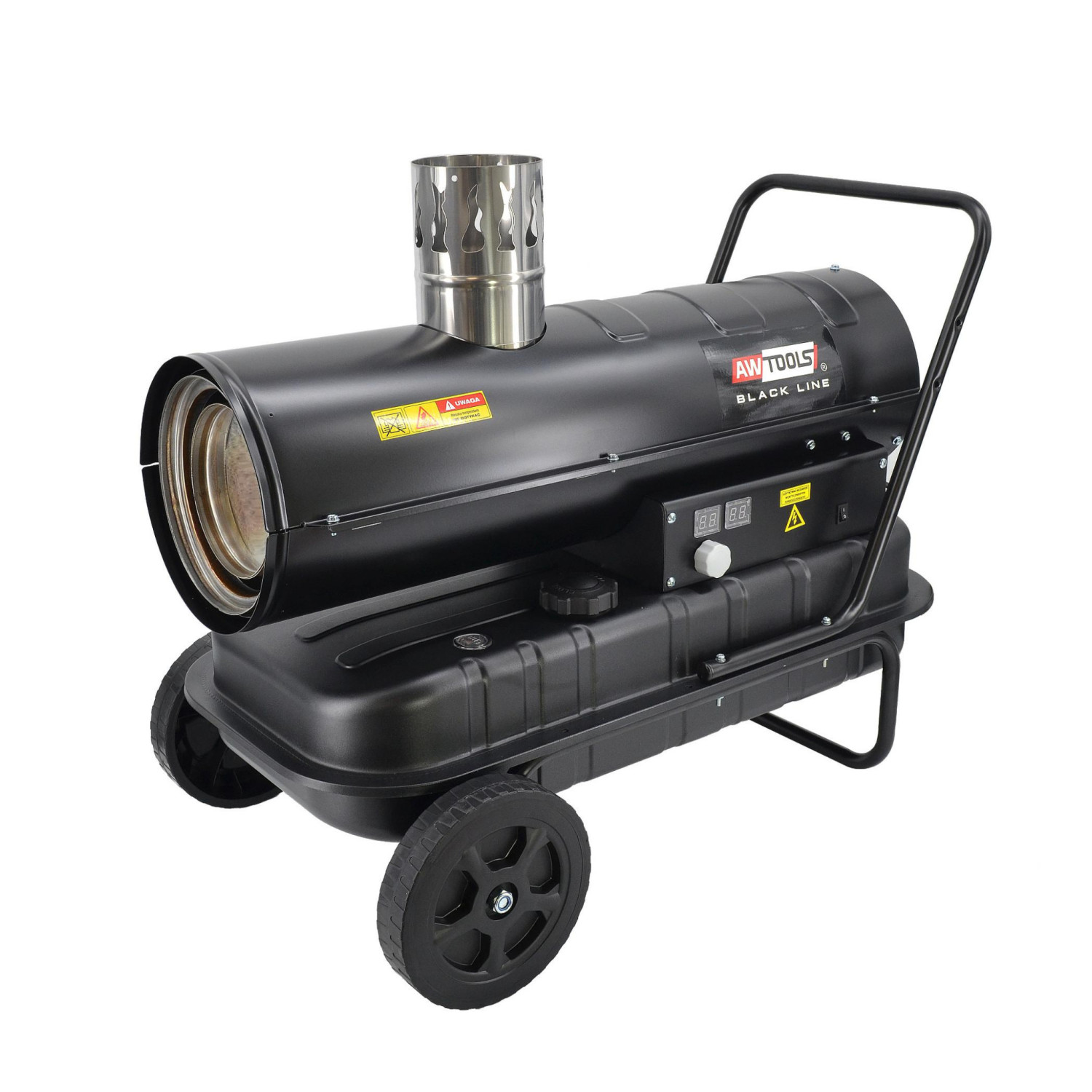

INDIRECT FIRED DIESEL SPACE HEATER 30kW BLACK LINE

Housing made of steel sheet with a black powder coated finish.
Stainless steel combustion chamber with fan cooling.
Heating parts made of stainless steel and copper alloy.
Equipped with electronic spark ignition.
Built-in thermostat ensures constant temperature and protects against overheating.
Flue system allows the fumes to escape which creates a cleaner dry heat which is ideal for confined spaces or areas with limited ventilation.
Integrated insulated carry handle and wheels for mobility.
Suitable for warming well ventilated warehouses and large workshop areas, construction & building sites and drying applications.

Technical data:
Model: HD30C
Power output: 30 kW - 258000W
Power input: 220-240V~50Hz
Speed: 2800 rpm
Thermal fuse: 16 A
Rated current: 1.1 A
Fuel type: diesel/ kerosene
Fuel consumption: 2.4 kg/h
Max. BTU output: 102360 btu/h
Tank capacity: 50L
Air pressure: 0.31 bar
Protection class: I
Thermostat control: 75°C
Temperature range: -15°C +40°C
Air flow: 793 m3/h
Heating area: 200-300 m2
Working time: 17h
Protection type: IPX4
Dimensions: 1045 x 465 x 505 mm
Weight: 26.5 kg
