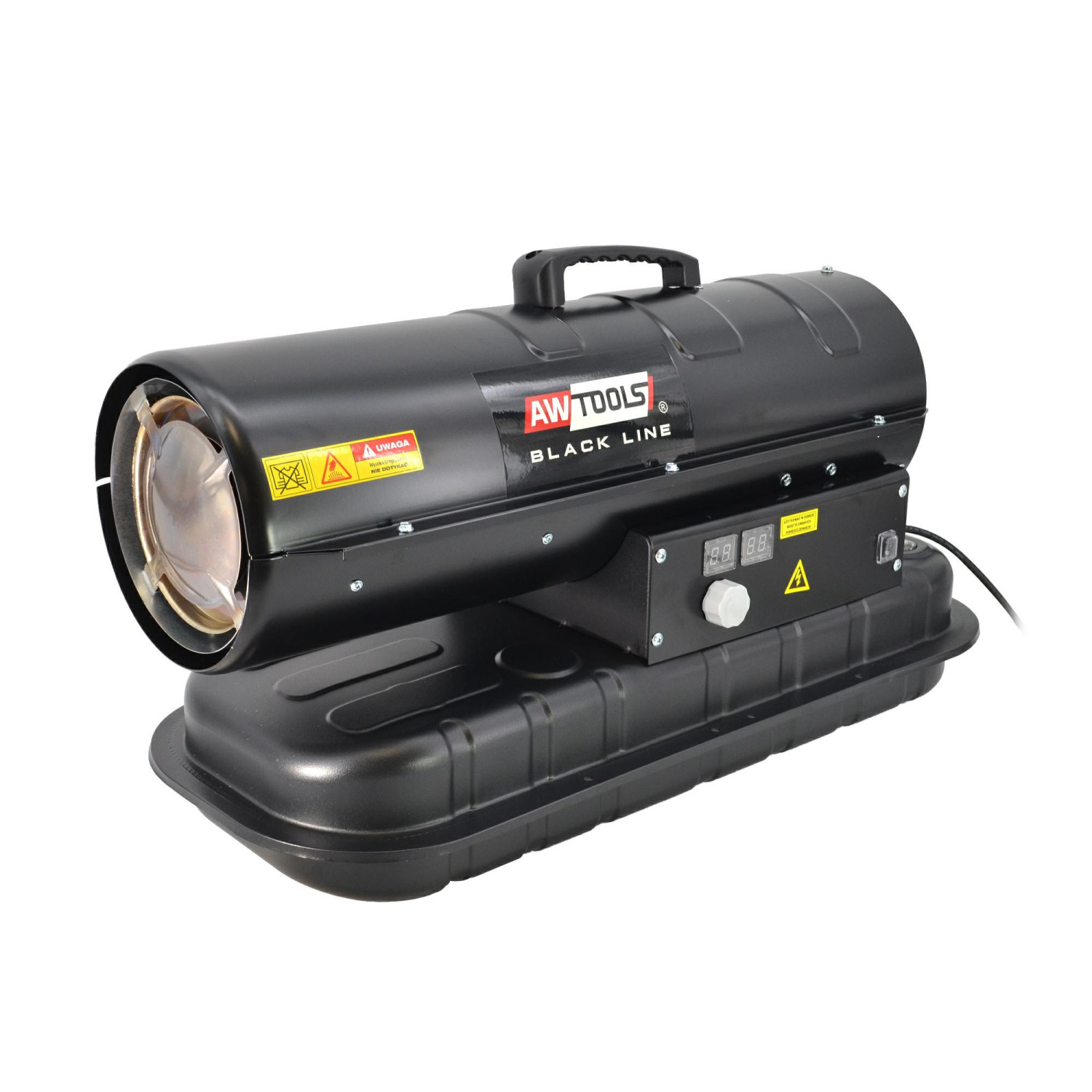

DIESEL SPACE HEATER 20kW/ BLACK LINE

Housing made of steel sheet with a black powder coated finish.
Stainless steel combustion chamber with fan cooling.
Heating parts made of stainless steel and copper alloy.
Equipped with electronic spark ignition.
Built-in thermostat ensures constant temperature and protects against overheating.
Integrated insulated carry handle for easy transport.
Suitable for warming well ventilated warehouses and large workshop areas, construction & building sites and drying applications.

Technical data:
Model: HD20
Power output: 20 kW - 17200W
Power input: 220-240V~50Hz
Speed: 2800 rpm
Thermal fuse: 16 A
Rated current: 1.1 A
Fuel type: diesel/ kerosene
Fuel consumption: 1,65 kg/h
Max. BTU output: 68240 btu/h
Tank capacity: 22L
Air pressure: 0.32 bar
Protection class: I
Thermostat control: 95°C
Temperature range: -15°C +40°C
Air flow: 550 m3/h
Heating area: 220-300 m2
Working time: 14h
Protection type: IPX4
Dimensions: 795 x 370 x 440 mm
Weight: 13.4 kg
