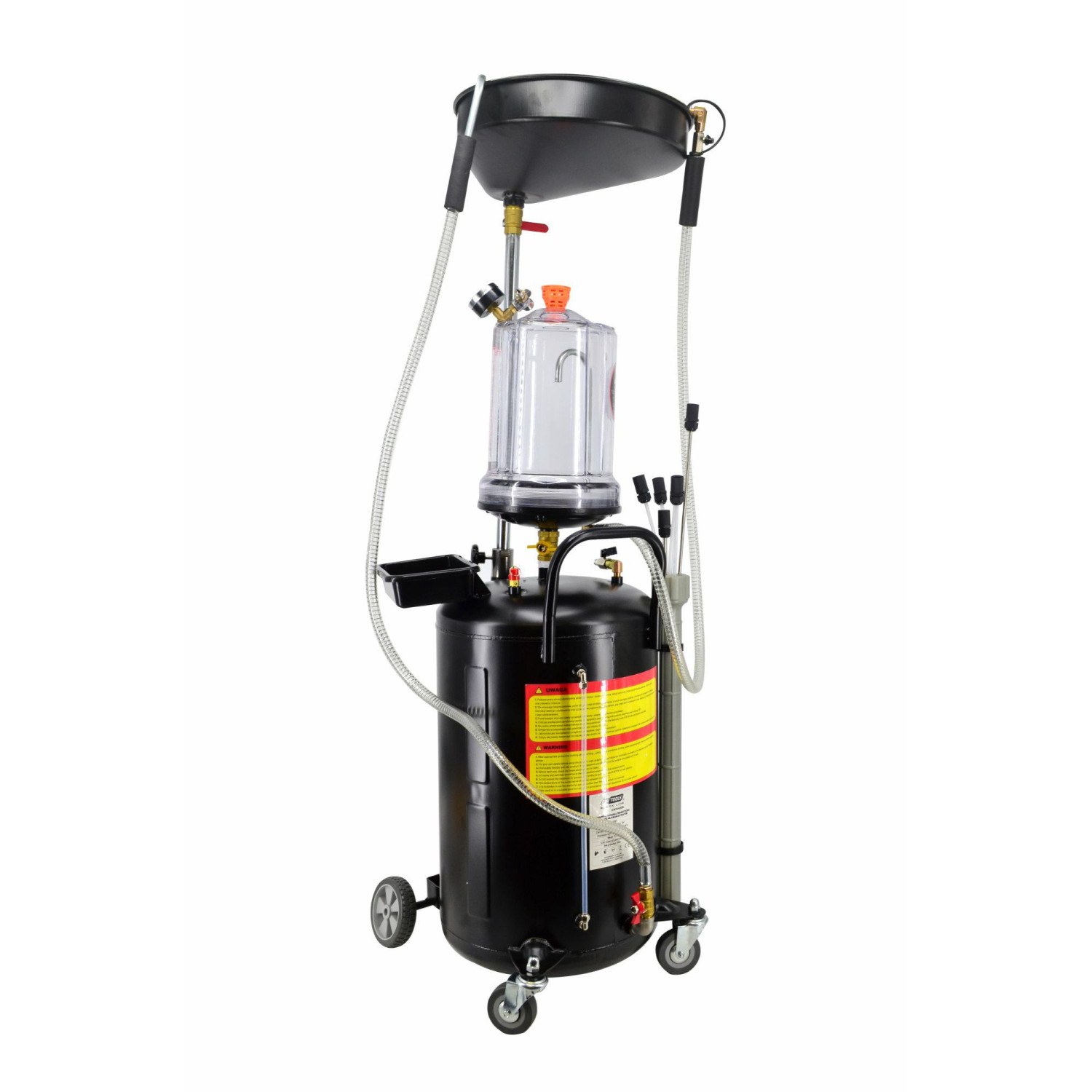

AIR-POWERED/ PNEUMATIC OIL EXTRACTOR PUMP 70L

Durable, powder-coated steel construction ensures a long service life and resistance to workshop conditions.
Powered by compressed air, the unit uses a vacuum system for fast, efficient oil extraction.
Dual operation supports both vacuum extraction via dipstick probes and gravity draining via an adjustable bowl, allowing flexible operation depending on the vehicle and service method.
Equipped with a transparent tank for visual fluid inspection, a pressure gauge, and a regulator with a safety valve for precise, safe operation.
Integrated system allows extraction from multiple points and quick tank discharge using compressed air.
Designed for mobility, it features two fixed and two swivel wheels, along with a sturdy handle for easy transport around the workshop.
Suitable for extraction, transport, and disposal of engine oil, transmission fluid, and differential oil.
Ideal for automotive workshops, mechanical services, and fleet maintenance facilities.

Technical data:
Main tank capacity: 70L
Control tank capacity: 10L
Drip tray capacity: 10L
Drip tray diameter: 410 mm
Oil temperature: 40-60°C
Suction pressure: 0.7-0.8 MPa
Extraction pressure: 0.18 MPa
Air consumption: 90 l/min
Required air flow: 150 l/min
Total height: 150cm
Weight: 23kg

Set includes:
1x extractor
6x suction probes
